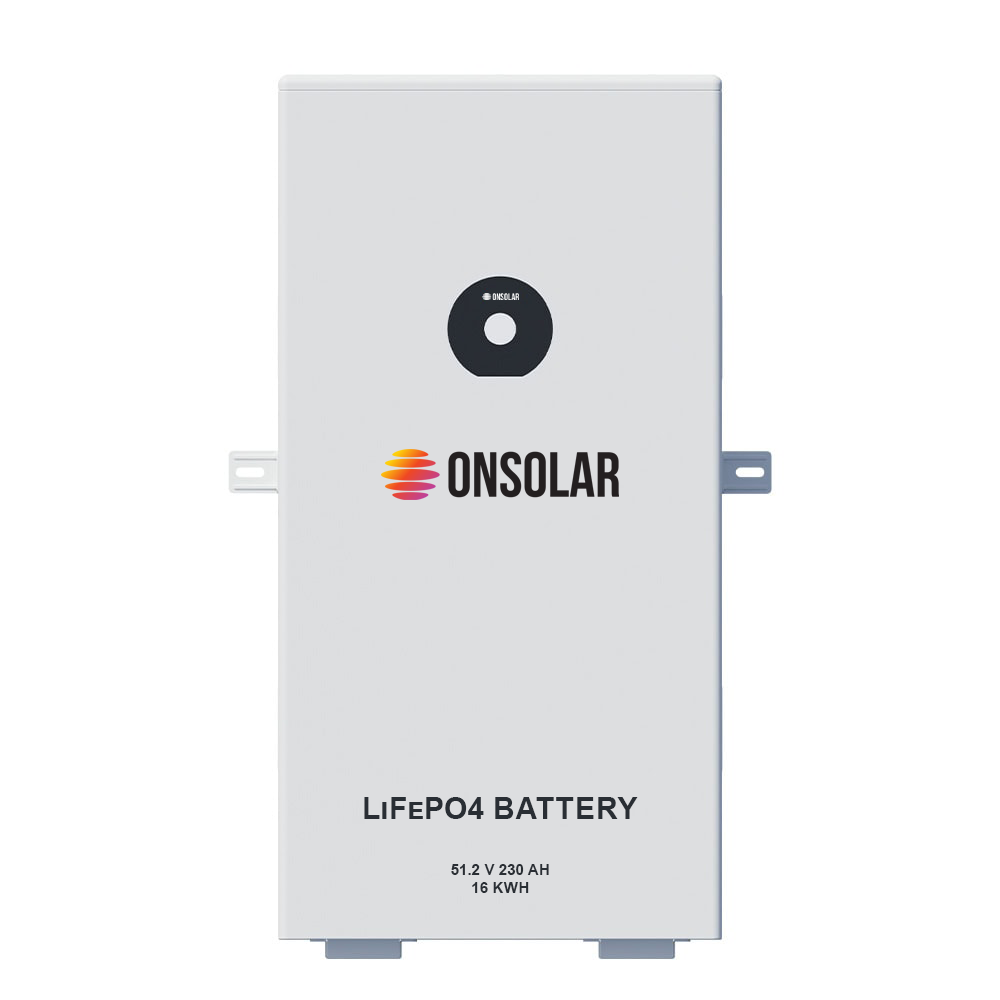

LiFePO4 Battery 16kWh
Built with advanced LiFePO4 technology, the ONSOLAR 16kWh residential battery delivers reliable energy storage, intelligent performance, and long-term efficiency for modern home energy systems.
Trusted by these amazing companies
- Lightweight 123kg structural design engineered for simplified transportation, handling, and installation efficiency.
- Scalable energy architecture supporting up to 32 units in parallel for flexible residential and commercial expansion requirements.
- Integrated battery pack design optimized to reduce line losses while improving overall energy density and operational efficiency.
- Versatile installation configurations including wall-mounted, floor-standing, and stacked deployment options for maximum installation flexibility.
- Wide operating temperature range from -20°C to 55°C for reliable charging and discharging performance across diverse environmental conditions.
- Intelligent smart control system featuring automatic networking, rapid device pairing, local monitoring, and real-time system warning capabilities.
- Advanced Battery Management System (BMS) with intelligent cell balancing, active fuse protection, and comprehensive safeguards against thermal runaway, overvoltage, overcurrent, and other operational risks.
Technical Specifications
| Model |
| |
| Battery Chemistry | LiFePO4 | |
| Capacity | 230 Ah | |
| Scalability | Max. 32 pcs in parallel | |
| Nominal Voltage | 51.2 V | |
| Operating Voltage | 44.8 V ~ 57.6 V | |
| Nominal Energy | 16 kWh | |
| Weight Approximate | 123 kg | |
| Dimension（W×H×D） | 464 x 925 x 267 mm |
